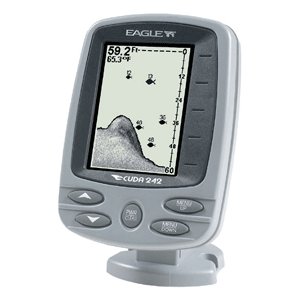

Eagle Cuda 242 Fish Finder
Product Features

* 4" (10.2 cm) diagonal screen
* 240Vx160H Film SuperTwist LCD
* 4-level grayscale
* Depth capability to 600 ft* (183 m) with 800 watts of peak-to-peak power
* High-performance, low-profile 200 kHz Skimmer® transducer with built-in temp delivers a
wider, more effective fish detection area of up to 60° with high sensitivity settings - Operates
at boat speeds up to 70 mph (61 kts)
* Advanced Signal Processing (ASP™) automatically adjusts your settings for the best sonar
* Patented GRAYLINE® separates fish from nearby structure and bottom
* Advanced Fish I.D.™ shows underwater targets in different sizes of fish symbols
* FishTrack™ displays target depth readings above fish symbols
* Completely sealed and waterproof, even for use in harsh saltwater environments
200 khz transducer
HST-WSU        Part #106-48
Transom mount, 20 degree skimmer (200Khz) with built-in temperature. Includes power cable.
(20 ft cable)

PDRT-WSU        Part #106-69
Shoot-thru-hull mount, 20 degree pod type with remote temperature (200 kHz). Includes power
cable. (20 ft cable)

PDT-WSU        Part #000-0106-50
Trolling-motor mount, 20 degree pod type with built in temperature sensor (200 kHz). Includes
power cable. (10 ft cable)

PD-WSU        Part #106-52
Trolling motor mount or shoot-thru-hull, 20 degre power cable. (20 ft cable)

PTI-WSU        Part #106-68
Portable-mount, 20 degree ice fishing type (200 kHz). Includes power cable. (7 ft cable)

LEI-Extras
PTT-WSU        Part #106-55
Portable-mount, 20 degree skimmer with built in temperature sensor (200 kHz). Includes power
cable. (12 ft cable)

PT-WSU        Part #106-54
Portable-mount, 20 degree skimmer (200 kHz). Includes power cable. (15 ft cable)

Gimbal Brackets and In-Dash Mounting Kits
FM-6        Part #113-20
Flushmount kit.

GB-17        Part #113-16
Gimbal bracket.

GBSA-3        Part #113-26
Gimbal bracket swivel adapter.

Portable Accessories
PPP-12        Part #16-42
Portable AA-cell battery power pack (batteries not included).

Transducer Adapter Cables
TA-BL2U        Part #119-00
Adapts blue connector 50/200 kHz or 200 kHz transducers to units with newer black 50/200 kHz
or 200 kHz transducer/power connector.

TA-X2U        Part #99-78
Adapts new gray connector transducers to units with new black transducer/power connector. Built
in temperature will not function.

Transducer Extension Cables
XT-15U        Part #99-91
15' transducer extension cable. Includes power lead.
